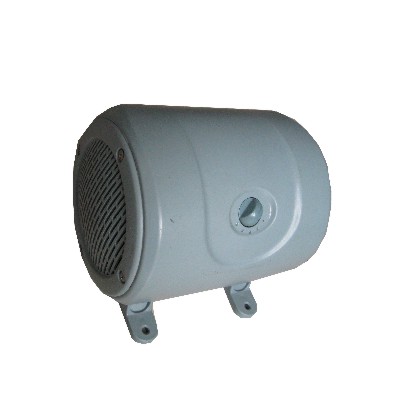

Marine double face type speaker

DOUBLE FACE TYPE SPEAKER

Model:YDC-1/3/5S



The double face type speaker is designed to be mounted at the wall of indoor areas, it with the volume control to adjust the volume. It can be divided into groups.



Description

The double face type speaker is designed to be mounted at the wall of indoor areas, e.g.passage,  it with the volume control to adjust the volume. It can be divided into groups.



Features:

  • Easy to install
  • Suitable for indoor area
  • Each speaker is individually short circuit protected
  • Can be divided into groups
  • Reliable and cost-effective
  • CCS certificate



Technical Specification:



Operating temperature -40° to 70° C / -40° to 158 ° F
Storage temperature range -40° to 70° C / -40° to 158 ° F
Relative humidity < 95% not condensing
Rating voltage 120V
Power 2X1W / 2X2W /  2X3W
Sound level 82 dB   85 dB  88 dB SPL (1m)
Color Milk white
IP Class IP22
Weight 0.5Kg
Material ABS plastic

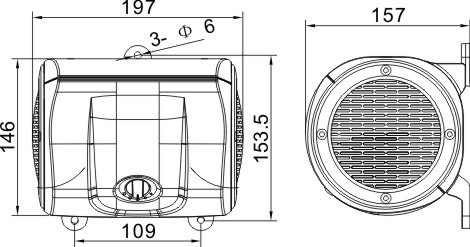

Dimension:



YDC-S Double face speaker dimension
