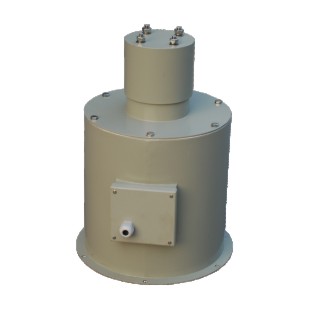

Speaker remote rotating unit

SPEAKER REMOTE ROTATING UNIT

Model:YZ1-S



It is used for mounting at outdoor area.



Description

It is used for rotating the horn speaker. It always uses together with YZ1K-S speaker rotating controller.



Features:

  • Easy to install
  • Suitable for outdoor horn speaker
  • Reliable and cost-effective



Technical Specification:

Operating temperature -40° to 55° C
Storage temperature range -40° to 55° C
Relative humidity < 95% not condensing
Color Grey
IP Class IP56
Weight 16Kg
Material Stainless Steel


Dimension:

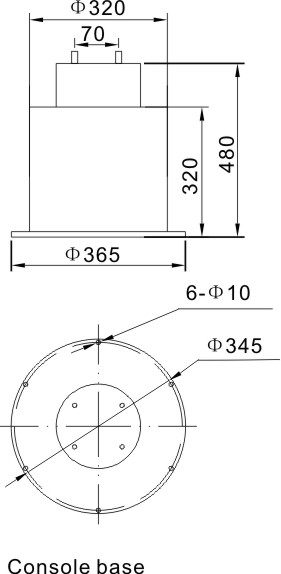

Speaker rotating console dimension





Connection drawing:

speaker controller connection drawing
