Port light

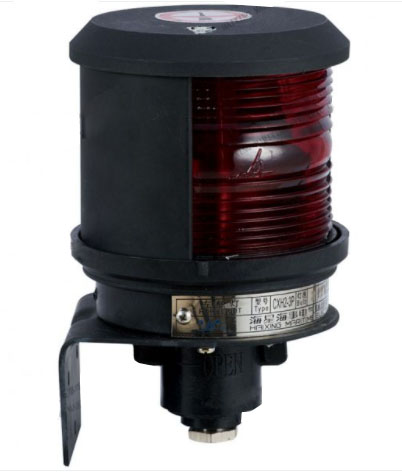

PORT LIGHT

Model: CXH2-3P

This series of signal light is used for light signal at night navigation for vessels length in 12-50 meters.







Description

This series of signal light is used for light signal at night navigation for vessels length 12-50 meters.



Features

  • Type Approved for Vessels lenght in 12 to 50 Meters
  • Highly reliable, virtually no maintenance required
  • Easy for installation and wiring



Standards

EU 2022/1157 MED/6.1

COLREG 71 as amended, Annex 1/14

IMO Res. A.694 (17)

IMO Res. MSC.253(83)



Approved to:

COLREG72,EN14744,IEC 60945,IACS E10,M.E.D.,CCS



Technical Specification:

Operating temperature -30° to 55° C
Storage temperature range -30° to 55° C
Relative humidity < 95% not condensing
Rated voltage DC12V/24V
Power 15W
Light source Incandescent lamp
Light holder BAY15d
Level arc 112.5°
Vertical arc +/-5°
Visibility 1n.m
Cable outside diameter Φ8- Φ10
Installation method Seat
Light body material PA+GF High-strength engineering plastic
Light shade material PC Engineering plastic
Light color Red
Protection class IP56
Weight 0.53Kg
